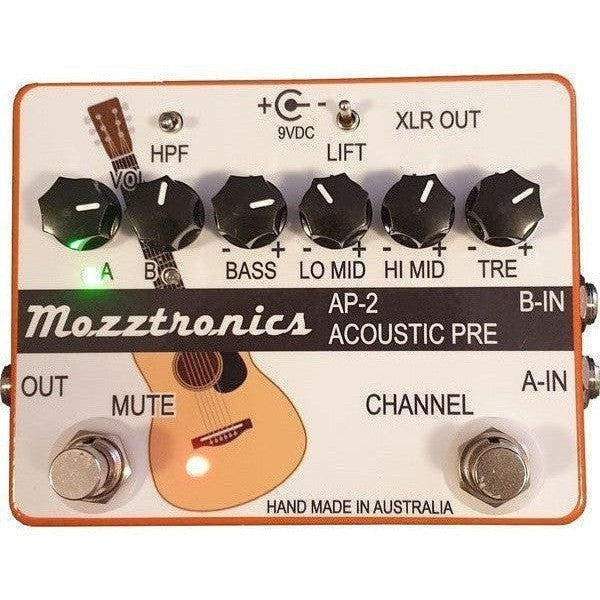

Mozztronics AP-2 Dual Channel Acoustic Preamp Pedal

The Mozztronics AP-2 is a dual-channel acoustic preamp and DI pedal built for musicians who want clean, detailed tone and genuine professional control from a single compact unit. Handcrafted in Melbourne, the AP-2 was originally developed for Mick Thomas of Weddings, Parties, Anything and suits guitarists, mandolin players or anyone running piezo-equipped acoustic instruments, replacing separate DI boxes and EQ pedals with two independent channels, dedicated volume controls and a shared 4-band EQ.

Built entirely with an all-analogue signal path, the AP-2 delivers pristine tone without added colouration. BASS, LOW MID, HIGH MID and TREBLE controls, plus a 100Hz high-pass filter to cut low-end rumble, let you shape your sound precisely, while the CHANNEL footswitch switches between instruments and the MUTE footswitch silences the XLR output while keeping the 1/4" output live. It's ideal for players who need reliable, precise tone shaping on stage or in the studio.

Features

• Handbuilt dual-channel acoustic preamp and DI pedal with independent volume controls for two instruments.
• 4-band EQ (BASS, LOW MID, HIGH MID, TREBLE) plus a 100Hz high-pass filter for precise tonal control.
• CHANNEL footswitch for effortless switching between instruments during a performance.
• MUTE footswitch silences the XLR output while keeping the 1/4" output live, ideal for quick changes mid-gig.
• 100% analogue signal path delivers pristine tone with no added colouration.

Specs

• Channels: 2, with independent volume controls
• EQ: 4-band (BASS 50Hz, LOW MID 350Hz, HIGH MID 4kHz, TREBLE 15kHz)
• Filter: High-pass filter at 100Hz
• Outputs: Balanced XLR DI with ground lift; 1/4" output
• Footswitches: CHANNEL (switch inputs), MUTE (XLR mute)
• Signal path: 100% analogue
• Power: 9V DC, Boss-style 2.1mm centre-negative (not included)
• Construction: Handbuilt in Australia
