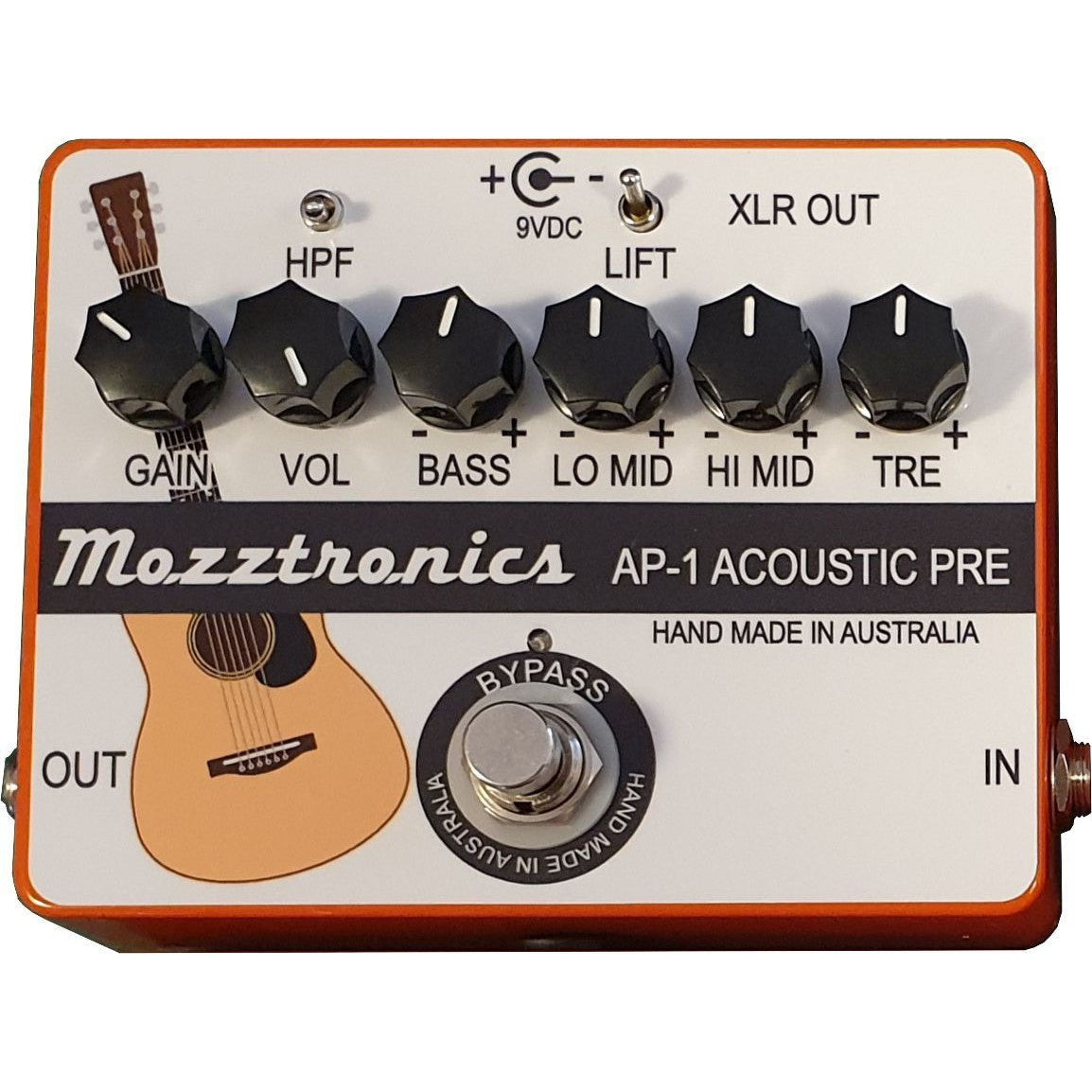

Mozztronics AP-1 Acoustic Preamp Pedal

The Mozztronics AP-1 is a handcrafted acoustic preamp and DI pedal built for players who want detailed tone and precise control. Made in Melbourne, this all-analogue preamp is designed specifically for piezo-equipped acoustic guitars and offers tone-shaping tools often missing from factory-installed preamps, with a studio-grade 4-band EQ and transparent signal path that keep your acoustic tone natural and balanced.

The AP-1 features BASS, LO MID, HI MID, and TREBLE controls alongside a 100Hz High Pass Filter to tame boominess and soundboard thump. The GAIN knob sets instrument input level while VOL manages master output, and a toggleable internal switch selects BYPASS or MUTE for the XLR DI out, with an earth LIFT switch for clean, hum-free signal, ideal for acoustic musicians who want no-compromise tone shaping on stage or in the studio.

Features

• Handbuilt acoustic preamp and DI pedal with 100% analogue circuitry.
• 4-band EQ with targeted frequency control tailored to acoustic guitars.
• 100Hz High Pass Filter removes low-end rumble and handling noise.
• Toggleable internal MUTE or BYPASS mode gives flexible control over the DI output.
• Balanced XLR DI output with earth lift for clean live and studio tone.

Specs

• Signal path: 100% analogue
• EQ: 4-band (BASS 50Hz, LO MID 350Hz, HI MID 4kHz, TREBLE 15kHz)
• Filter: 100Hz High Pass
• Outputs: Balanced XLR DI (with ground lift), 1/4" output
• Controls: GAIN, VOL, EQ knobs, internal MUTE/BYPASS switch
• Indicator: Red LED for effect active
• Power: 9V DC (Boss-style 2.1mm centre-negative, not included)
• Construction: Handbuilt in Melbourne, Australia
